Exploration initiatives over the past decade have led to renewed interest in exploration in the slope and deep-water regions of offshore Newfoundland and Labrador, Canada. New multi-client regional 2D seismic surveys (2011-2018), guided initially by satellite slick mapping, have provided approximately 170,000 line kms of long offset, broadband 2D seismic data, and over 22,000 km2 of long offset, broadband 3D seismic data. The data was acquired in areas where possible hydrocarbon seepage and new exploration leads suggested that a working petroleum system existed in these under-explored frontier basins. Prior to 2011, the majority of offshore Newfoundland and Labrador sedimentary basins were defined on limited vintage seismic data, and in some cases gravity data where no seismic data coverage existed. With the initiation of modern regional 2D and 3D seismic programs, Nalcor Energy commenced the systematical mapping of the Newfoundland and Labrador offshore in order to assess the extent of the sedimentary basins and also to develop an understanding of the hydrocarbon potential in these frontier regions. In conjunction with seismic data acquisition, Nalcor Energy has initiated a number of scientific studies to build on this new knowledge base and help de-risk exploration in these areas. These regional studies include metocean, regional drilling metrics, biostratigraphy, seabed coring, CSEM, source rock geochemistry, fluid inclusion, geopressure, rock physics, high resolution digital capture and cataloguing of cuttings, core and thin section data, and resource assessment studies. These studies aim to assist in providing foundational insight to the region’s exploration potential and operational and subsea considerations. This integrated approach to regional exploration data collection will act as a template for future work in other Newfoundland and Labrador offshore areas.

Introduction

Covering an area of approximately 1 million km2, Newfoundland and Labrador’s sedimentary basins remain largely under-explored. Dormant exploration activity led to a 30 year gap in data collection over most offshore regions. In 2009, Nalcor Energy and Airbus (formally Astrium) engaged in a satellite survey of the Labrador Sea to map surficial, naturally occurring hydrocarbon slicks throughout the eastern margin of Newfoundland and Labrador. Results from that work led directly to a proposed Nalcor-invested-and-partnered TGS-PGS multi-client 2D regional seismic survey in the deep-water areas of the Labrador Sea and south into the Orphan and Flemish Basins (Figure 1). Seismic data collection continued year over year; these new regional long-offset seismic surveys now comprise over 170,000 line kms of high quality 2D seismic data and three 3D seismic surveys, covering approximately 22,000 km2. Early interpretational results of some of that data have led to revisions of the regional basin configuration in the Orphan/Flemish Basins (Cameron et al, 2017, McCallum et al, 2017, Figure 2). As well, new seismic data and interpretation have defined new Mesozoic and Cenozoic basins in the slope and deep water (Carter et al, 2013), and have extended the limits of the known Mesozoic- and Cenozoic-aged basins.

Fig. 01

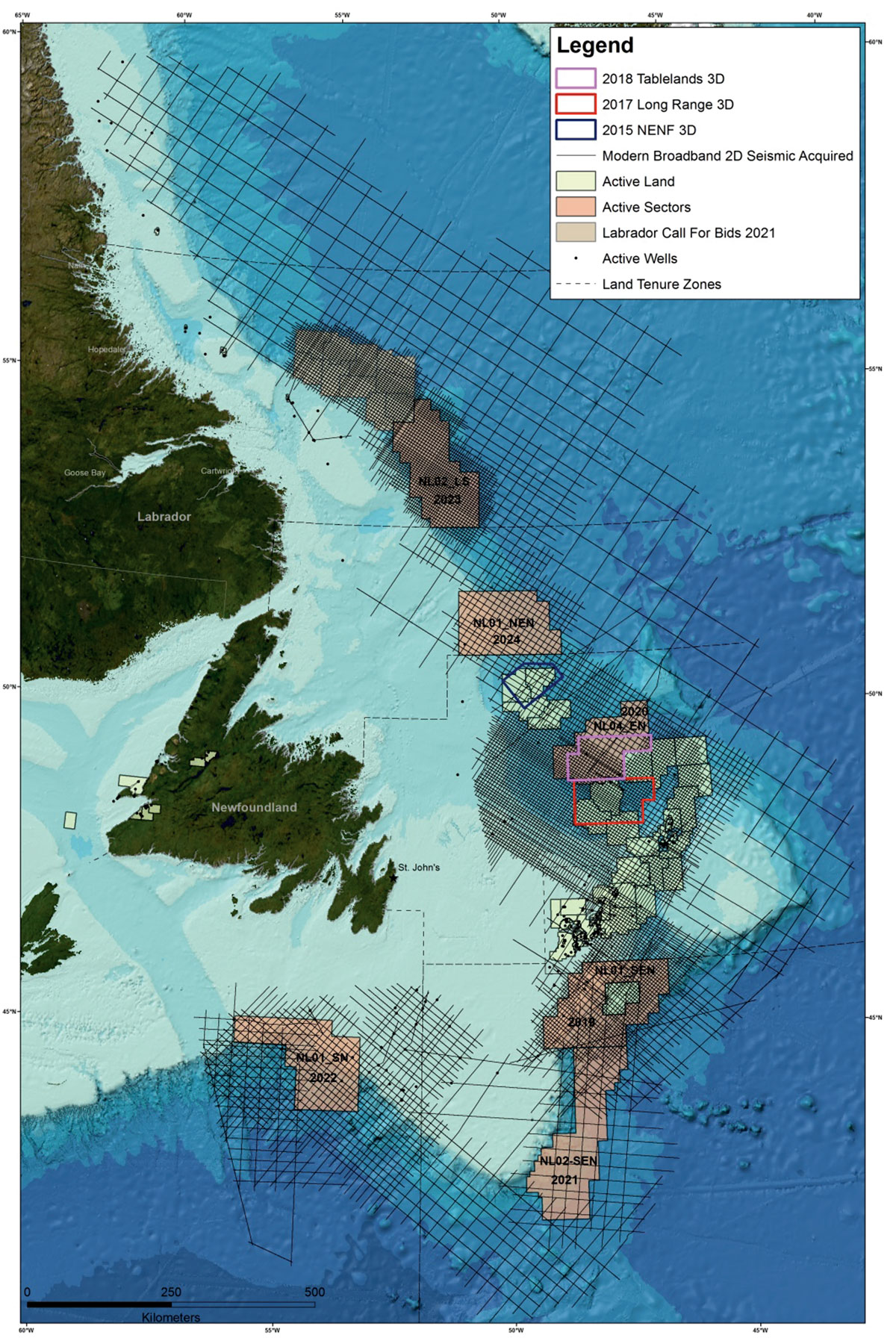

Figure 1. Newfoundland and Labrador offshore areas, showing recent (2011-2018) seismic acquisition, along with updated license rounds.

Initiatives

Through the acquisition seasons of 2011 to 2018, new long-offset 2D and 3D broadband Geostreamer seismic data were acquired covering the offshore Newfoundland and Labrador slope and deep-water regions (Figure 1). A significant percentage of the survey is in an area of the Labrador Sea deep water that was never before imaged by seismic data. With newly acquired 2D seismic data, in 2012-2013 the exploration group was able to define three new sedimentary basins (Chidley, Holton, and Henley basins) and refine the mapping on a fourth basin (Hawke Basin) (Carter et al, 2013).

Fig. 02

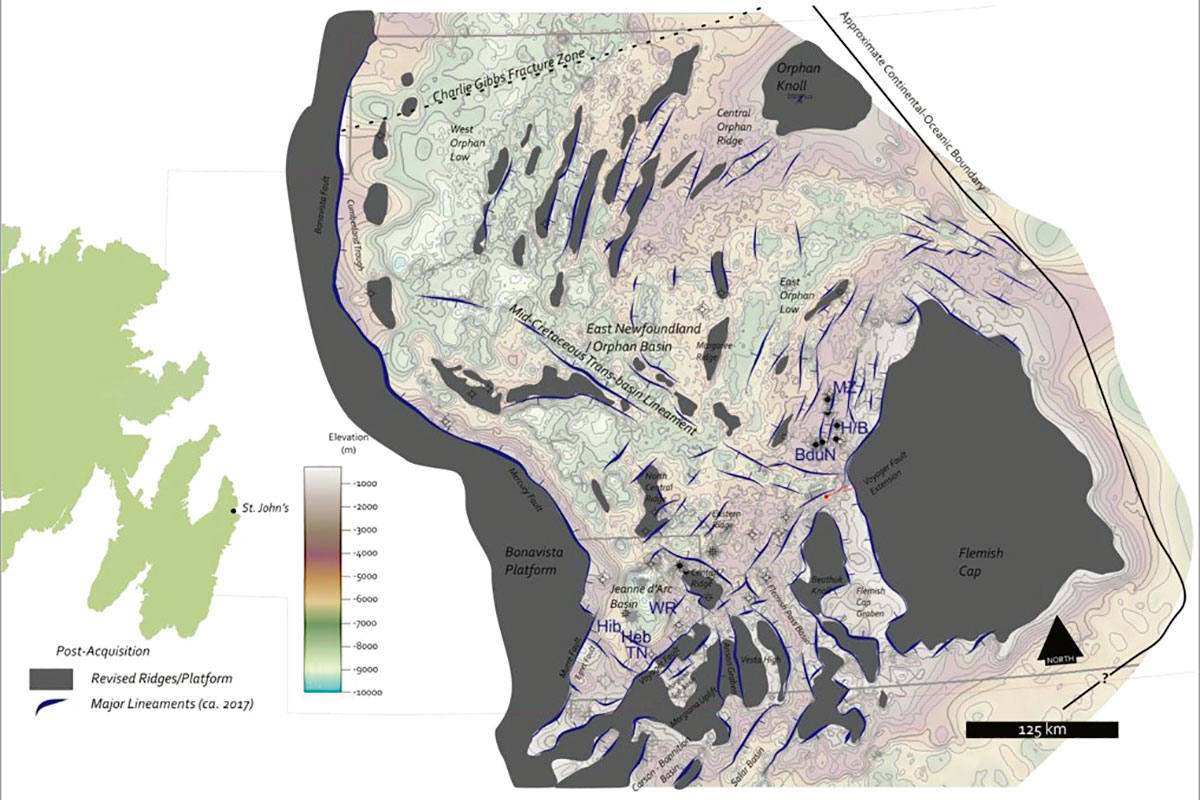

Figure 2. Base Mesozoic – revised basin configuration – 2017.

Seismic data acquisition will continue in 2019, expanding the regional coverage of the southern regions of the Newfoundland offshore, as well as the 3D seismic coverage. Insights from the seismic data have led to a number of studies, including continued satellite seep assessment, seabed coring, metocean, regional geopressure, regional rock physics, acquisition of CSEM data, and continued gravity acquisition to help with potential basement definition The data taken from these various studies are then used as inputs into an independent basin analysis study by Beicip-Franlab in the form of Resource Assessments over upcoming license round areas.

In 2017 Nalcor Energy – Oil & Gas partnered with Fugro Inc., to conduct a 10,000 km2 multibeam, heatflow, and shallow seabed coring project over the 2018 Newfoundland and Labrador Call for Bids area within the Orphan Basin. The first phase of the survey was designed to acquire multibeam and backscatter images from the seafloor and to look for indications of hydrocarbon seep escape features or water column anomalies. The second phase of the survey included the recovery of 99 shallow seabed cores for geochemical analysis of headspace gas, isotopes, and biomarkers. As well, 12 heatflow locations were acquired, where multiple heatflow measurements were taken for redundancy. Encouraging results of the 2017 Orphan seabed sampling study led to the acquisition of the 2018 multibeam, heatflow, and seabed coring study conducted over the 2019 Carson/Bonnition/Salar license round area. This survey is showing positive results in the preliminary data, with water column anomalies, as well as above-background thermogenic indications in the onboard headspace gas analysis (Figure 3).

Fig. 03

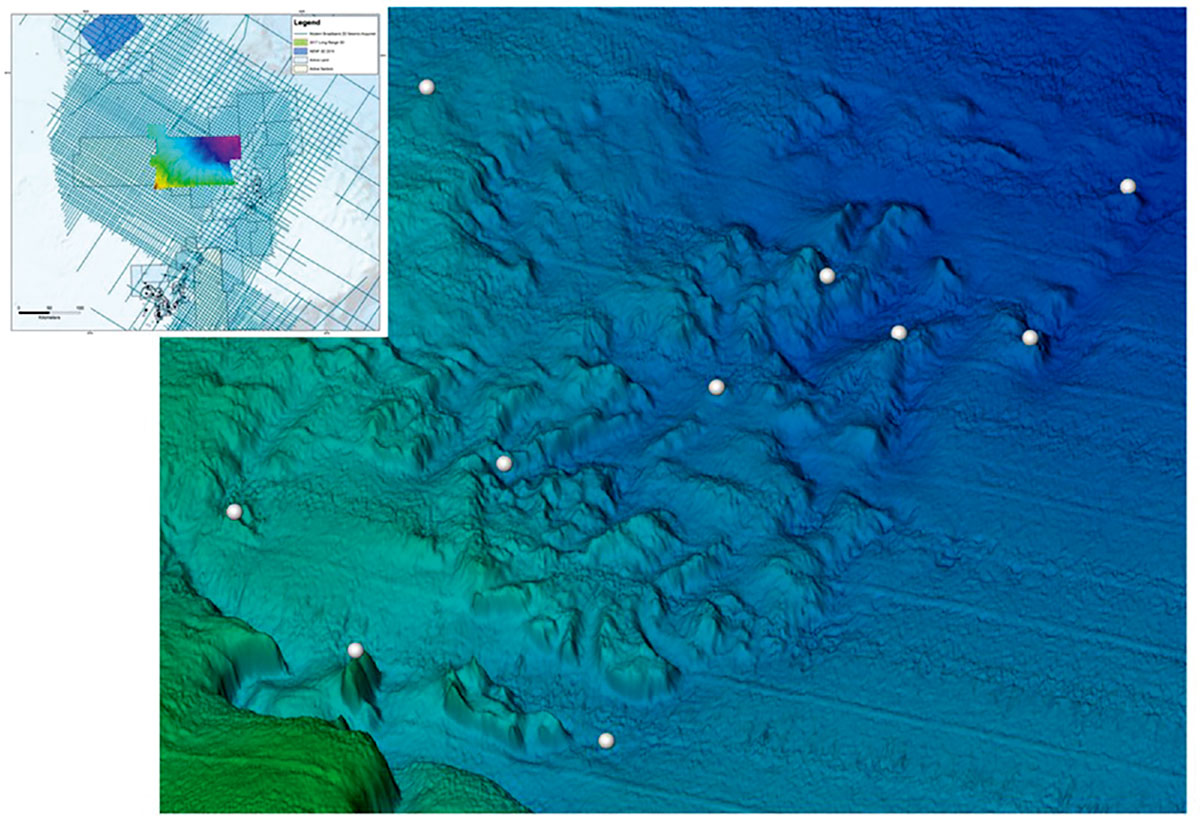

Figure 3. Mulitbeam data and sea bed coring locations indicated – 2018.

Beginning in 2014, Nalcor partnered with C-Core on a significant regional metocean study for the Newfoundland and Labrador offshore. This study was published in two phases: the first phase covered the Labrador Sea (published in May 2015); the second phase covered the entire Grand Banks and Gulf of St. Lawrence (published in June 2017). The study subdivides the offshore into a grid composed of 575 cells (Figure 4), covering an area of over 2.3 million square kilometers. Each of these grid cells has a detailed comprehensive report on metocean conditions, including: wind, wave, currents, vessel icing, visibility, pack ice, icebergs, and sea surface temperature. This study also has comparisons of each cell’s metocean conditions to other areas of the globe with harsh exploration and development conditions. As well, climatological summaries and trends are discussed in this study.

Fig. 04

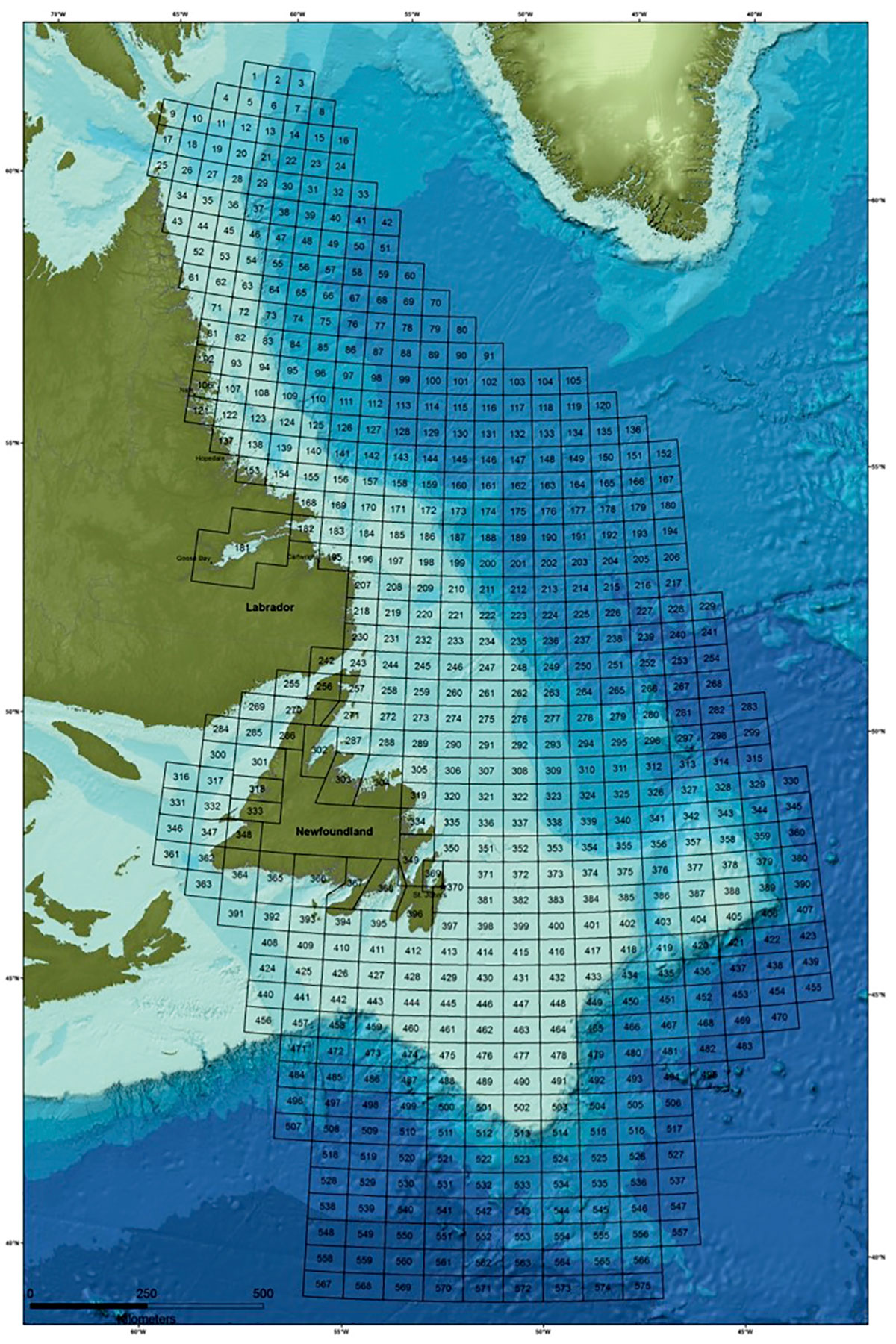

Figure 4. Regional metocean study. 575 grid cells contained within the study area.

A regional geopressure study was conducted in 2013-14 (IKON Science) in order to examine and interpret pressure and related data from wells drilled on the Labrador Shelf. The area studied included the Saglek, Hopedale (including Nain, Hamilton and Harrison sub basins), and Orphan basins, and the newly mapped slope and deep water, including the Henley, Chidley, Hawke and Holton basins (Carter et al., 2013), where there are no wells drilled to date. The objective was: (a) to provide a framework for future drilling by helping to define the elements of the drilling window (pore and fracture pressure), and (b) to examine how pressure data may improve the quantification and exploration risk of future prospects by, for example, analysis of the risk for mechanical seal failure. A further objective of this study has been the utilization of analogues from either present or ancient deep-water settings globally to help understand how relationships in the shallow water manifest in the deep water. Using a combination of theoretical modeling based on offset relationships, and seismic interval velocity data, the study has produced five vertical pressure profiles, termed TPP’s. Overall, the profiles suggest that deep-water pore pressures will be in a higher range relative to the shelf, with narrower drilling windows, which is typical of deep-water environments globally, (Figure 5). This study is available for download from the nalcorenergy.com/exploration webpage.

Fig. 05

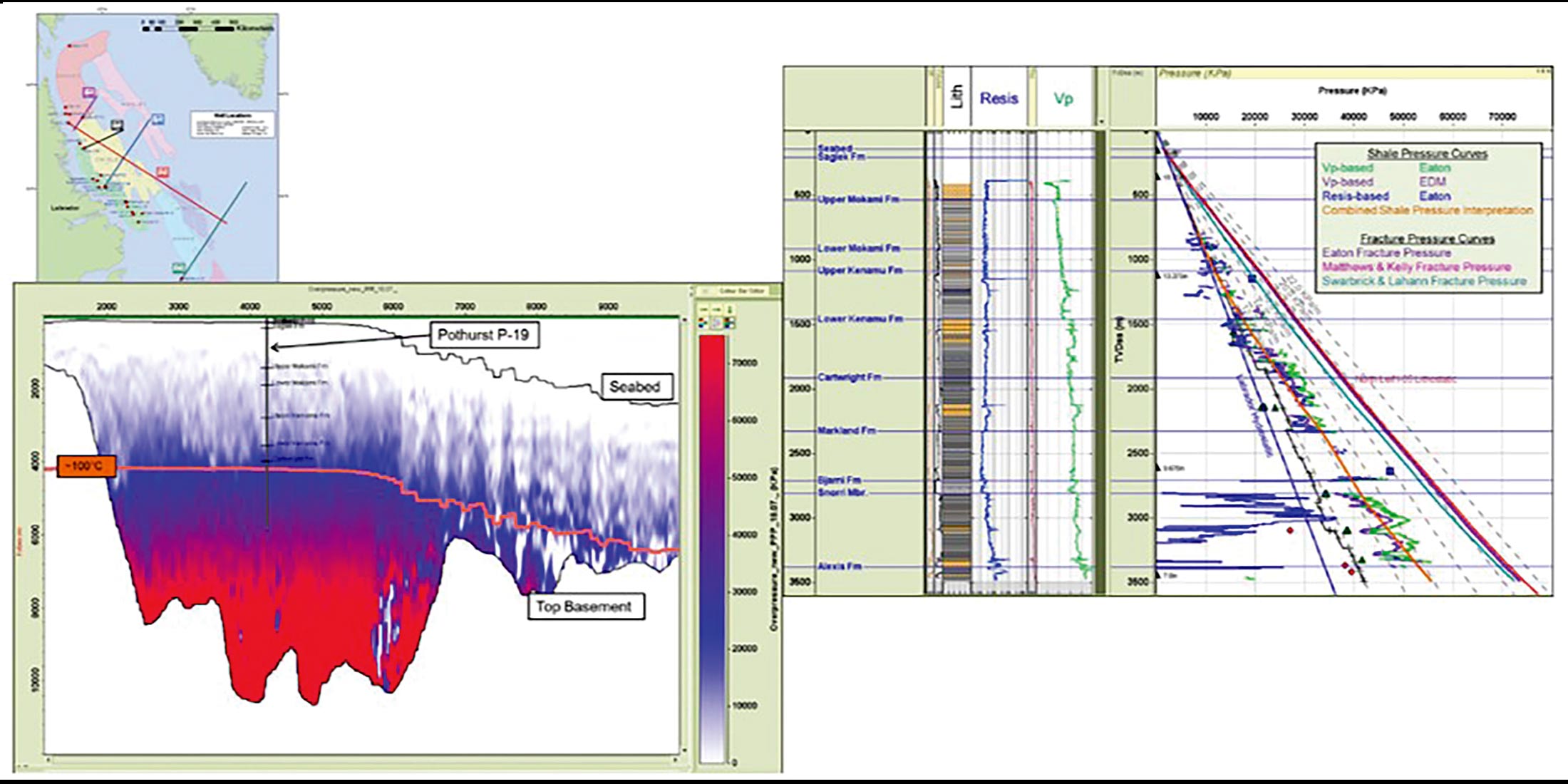

Figure 5. Various results from the geopressure study – 2013.

A regional rock physics study was undertaken in 2015-16 with IKON Science to establish some fundamental understanding of the relationships between the elastic properties, as sensed by the seismic wave, and the rock properties measured in the well. By coupling these two domains, we have created site-specific rock physics models that reconcile the well data, seismic data, and theory for use in forward modelling scenarios to match seismic anomalies. The models, applicable for uncemented and slightly cemented sediments, are based on a hybrid approach, where we combine theoretical and heuristic models Figure 5. Various results from the geopressure study – 2013. Figure 6. EM results over proven resources – 2014. to describe medium to high porosity clastic sediments. The strength of these models is that the physics behind them is understood and theoretically generalized, hence making them a powerful tool for extrapolating outside well control to match seismic amplitudes of interest. This study is available for download from the nalcorenergy.com/exploration webpage.

Fig. 06

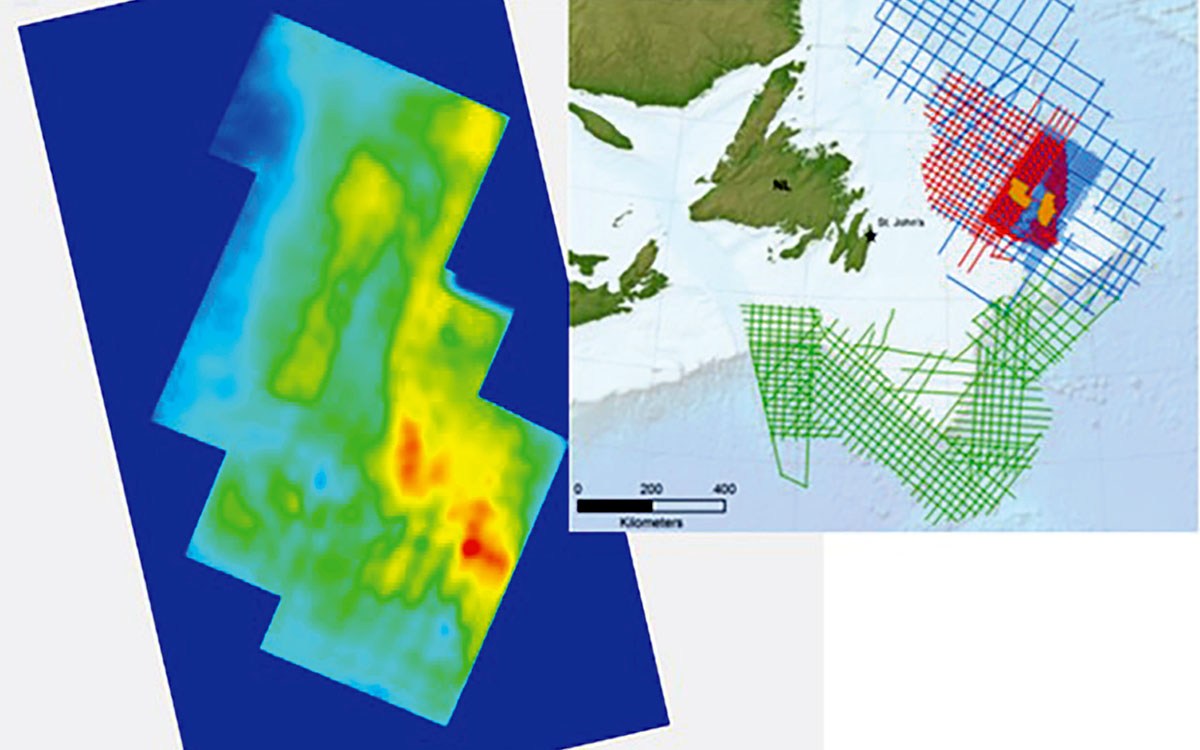

Figure 6. EM results over proven resources – 2014.

In 2014, EMGS conducted a comprehensive multi-client campaign to acquire 3D wide-azimuth CSEM and 3D Magnetotelluric (MT) data over the Flemish Pass and Eastern Orphan Basin, including the Mizzen, Harpoon and Bay du Nord discoveries as calibration points. CSEM measures the electrical properties of the subsurface from the seafloor in a similar way as logging tools measure the formation resistivity in wells. The calibration data acquired (Figure 6) over known wells show that integrated interpretation of resistivity volumes together with available well information and recent 2D seismic data provides another tool to identify and de-risk leads and prospects in the Flemish Pass basin. EM techniques can also give an indication of resistivity trends and information on deep resistors to improve the geologic model of the complex structural and depositional geology of the East Canada Flemish area.

At the crustal scale, gravity data can provide information on crustal structure, while also helping to hone seismic interpretations along the newly acquired seismic reflection lines. Well ties from the shelf allow interpreted syn-rift, drift, and post-drift intervals to be extrapolated to slope and deep-water regions. Due to the variable nature of the basement and overlying strata, however, the character of the basement marker can change from fault block to fault block, resulting in local confidence in the correlation of the horizon, but less confidence between faulted regions. Consequently, gravity data modelling was incorporated into the seismic interpretation process in order to help refine the range of depth to basement and hone the interpretation to allow for regional mapping of the rift package thickness (Welford et al. 2012). The integration of these two data types has resulted in the revision of basement trends, has led to refinement of the basin extents and thicknesses, and has provided further constraints on crustal thickness variations along the Newfoundland and Labrador margin.

With the initiation of a new scheduled land tenure system by the Canada-Newfoundland offshore Petroleum Board in 2013 (https://www.cnlopb.ca/news/nr20131219/), the exploration cycle in the region has been expanded, allowing more time for detailed geoscientific studies to be conducted prior to a landsale. In advance of any call for bids, Nalcor Energy invests in the collection of 2D seismic data at a 5km by 5km grid or better (i.e. 3D) over the area of interest. This data is interpreted by Nalcor Energy, and Beicip Franlab is engaged to conduct an independent resource assessment (Figure 7) on the upcoming exploration parcels. The results of these studies are publically available prior to the closing of the call for bids (http://exploration.nalcorenergy.com/exploration-reports/resource-assessments/). The Beicip Franlab reports include a detailed geological history of the region and provide ranges of unrisked, in-place volumes calculated from basin modelling work.

Fig. 07
Figure 7. Published Resource Assessment in the 2018 License Round.

Nalcor Energy – Oil & Gas has published many of the above mentioned studies on its website (http://exploration.nalcorenergy.com). Nalcor Energy’s web page also provides other various studies for download, such as biostratigraphic studies and drilling metrics studies for wells in our offshore. As well, Rockwash has completed a multi-client project with Nalcor where all cuttings, core, and thin section data that is available throughout the Newfoundland and Labrador frontier regions has been captured using ultra high resolution photography. The National University of Ireland at Galway conducts an ongoing fluid inclusion study on a subset of wells to assess the historical migration of fluids through reservoir rock within the Newfoundland and Labrador offshore. Many of these studies and their findings are also highlighted in the listing of recent (2010-2018) Nalcor published, authored, and co-authored papers. Lastly, Nalcor has also instituted an easy-to-use tool for capturing the insights of Newfoundland and Labrador’s offshore with our own Nalcor Exploration Strategy System (NESS), which is an interactive tool to be used by others to view our work and projects to date: (http://exploration.nalcorenergy.com/ness/overview).

Conclusions

Recent activity and technical geoscientific work on offshore Newfoundland and Labrador will continue to unlock the area’s secrets and minimize the risk in exploration for years to come. The integrated approach to data collection underpinning the broad regional studies discussed have identified new exploration fairways along the margin and have begun to reduce risk in key elements of prospectivity. While further investigation is required, the results of these initiatives have led to identification of new play trends and hundreds of leads and prospects that will be a focus of future exploration in the region.

End

Acknowledgements

We wish to thank TGS and PGS for authorization to present the seismic data, Airbus for their authorization to present the slick data, C-Core for the metocean data, IKON Science for the geopressure and rock physics data, Fugro for the seabed coring data, Dr. Welford for the gravity work, and EMGS for the CSEM data. We would also like to acknowledge Beicip-Franlab for their resource assessment work, and finally Nalcor Energy – Oil & Gas is thanked for permission to present this paper. We are grateful to Mike White and Alice Spencer of Nalcor for drafting certain figures.



About the Author(s)

Deric Cameron, after graduating from Memorial University of Newfoundland with a BSc in Geophysics in '96, began his career acquiring gravity and magnetic data in Northern Labrador with Excel Geophysical Inc. From there he moved into seismic data processing of foothills data with CGG and Arcis, before moving to the exploration plays in the Western Canadian Sedimentary Basin and Foothills of Alberta and BC with Devon. He later began working on the Deep Devonian and Carbonate Reefs of NEBC with Petro-Canada, during his time with Devon and Petro-Canada he pursued his MSc from the University of Calgary, graduating in 2007. After graduating, he moved onto development and exploration projects with Petro Canada based out on the East Coast of Canada, and then onto his current role of east coast exploration at Nalcor Energy in St. John’s Newfoundland. Deric has 25 years of exploration experience with a background in surveying, gravity, magnetics, seismic processing as well as advanced interpretation of stratigraphic and structural plays, both onshore and offshore. Deric is a member of the CSEG, SEG and the EAGE and is a registered Professional Geoscientist in Newfoundland and Labrador (PEGNL).

Victoria Mitchell holds a BSc and MSc in Geophysics from Memorial University of Newfoundland in St. John’s, NL. Upon graduation she moved to Calgary, Alberta to join the exploration team with Chevron Canada Resources. She worked with the Beaufort group, identifying exploration opportunities in the Mackenzie Delta region of the Beaufort Sea, NWT. In 2010 she returned to St. John’s to work with Husky within the Jeanne d’Arc exploration team. In this role she was responsible for identifying and advancing exploration targets in the Northern Jeanne d’Arc region as well as working with the development team to plan and execute wells in the North Amethyst field. In 2015 Victoria accepted an opportunity to join the Nalcor Energy exploration group. Victoria has 12 years of exploration experience primarily focused on seismic interpretation, offshore prospect identification, volumetrics and risk. Victoria is a member of the EAGE and is a registered member of PEGNL.

Erin Gillis joined Nalcor Energy – Oil & Gas in February 2010 and presently holds the position of Team Lead – Leads and Prospects Team within the Exploration Group. In this role Erin and her team are focused on the interpretation and mapping of play trends, leads and prospects as well as hydrocarbon resource potential within Newfoundland and Labrador’s frontier basins. Before joining Nalcor, Erin worked as a Geologist on the Thermal Team for Canadian Natural Resources Limited. Erin attended Memorial University of Newfoundland where she attained a Bachelor of Science and a Masters of Science (Geology). Erin has 13 years’ experience in the oil and gas industry and is a registered member of the Professional Engineers and Geoscientists of Newfoundland and Labrador (PEGNL).

Richard Wright joined Nalcor Energy – Oil & Gas in 2009 and presently holds the position of Exploration Manager. His team is responsible for Nalcor’s exploration strategy to delineate Newfoundland and Labrador’s frontier basins to assess the province’s oil & gas potential. Before joining Nalcor, Dr. Wright was part of the frontier exploration team for Chevron. Prior to Chevron, he was employed with a geophysical consulting firm in Orange County, California where he worked on a number of exploration and development projects in basins located in California, South America, North Sea, Middle East, West Africa and Offshore Australia.

Richard attended Memorial University of Newfoundland where he attained a Bachelor of Science (Hons) and a Ph.D. in Geophysics with a thesis evaluating 4D seismic at the Hibernia oil field. He is a member of multiple professional associations, including the Professional Engineers and Geoscientists of Newfoundland and Labrador, the Society of Exploration Geophysicists and the European Association of Geoscientists and Engineers.

In 2018, Dr. Wright was recognized by the Professional Engineers and Geoscientists of Newfoundland and Labrador with the Early Accomplishment Award and he was the 2016 recipient of the Newfoundland and Labrador Oil & Gas Industries Association (NOIA) Rising Star Award. Nalcor’s Exploration Strategy was awarded the 2015 Natural Resources Magazine Industry Excellence Award for Resource Development and in 2017, Nalcor Oil and Gas was a finalist for the Petroleum Economist (London) Award for Exploration Company of the Year.

References

Cameron, D., et al., 2017. Structural and Depositional Characteristics of Mesozoic Rift Section, Jeanne d’Arc to Flemish Cap Graben, offshore Newfoundland and Labrador, Canada. Abstract, 2017 AAPG-ICE Conference, London, UK.

Cameron, D., et al., 2015. Renewed Exploration and New Insights in the Slope and Deep-Water Regions of the Flemish Cap and Labrador Sea, Offshore Newfoundland and Labrador: Extended Abstract, CSEG Conference and Exhibition, Calgary, May 2015.

Carter, J., et al., 2013. New Insights on the Slope and Deep water region of the Labrador Sea, Canada. Abstract, 2013 EAGE Conference, London, UK.

McCallum, D., et al., 2017. A Revised Distribution of Mesozoic Sediments and its Implications on Play Type Elements and Interpreted Leads within the Orphan Basin, Offshore Newfoundland and Labrador, Canada. Abstract 2017 AAPG-ICE Conference, London , UK.

Green, S., et al., 2013. Regional Pore Pressure Analysis of Offshore Newfoundland and Labrador: Unlocking the Shelf to Deep Transition. IKON Science and Nalcor Energy.

Selnes, A., et al., 2016. Regional Rock Physics Analysis of Offshore Newfoundland and Labrador: Unlocking the Shelf to Deep Transition. IKON Science and Nalcor Energy.

Welford, J.K., Shannon, P.M., O’Reilly, B.M., and Hall, J. 2012. Comparison of lithosphere structure across the Orphan Basin–Flemish Cap and Irish Atlantic conjugate continental margins from constrained 3D gravity inversions. Journal of the Geological Society of London, 169, 405–420.

Wu, X., et al.,2015. EM Survey in the Flemish Pass Basin, East Canada: Extended Abstract, CSEG Conference and Exhibition, Calgary May 2015.
